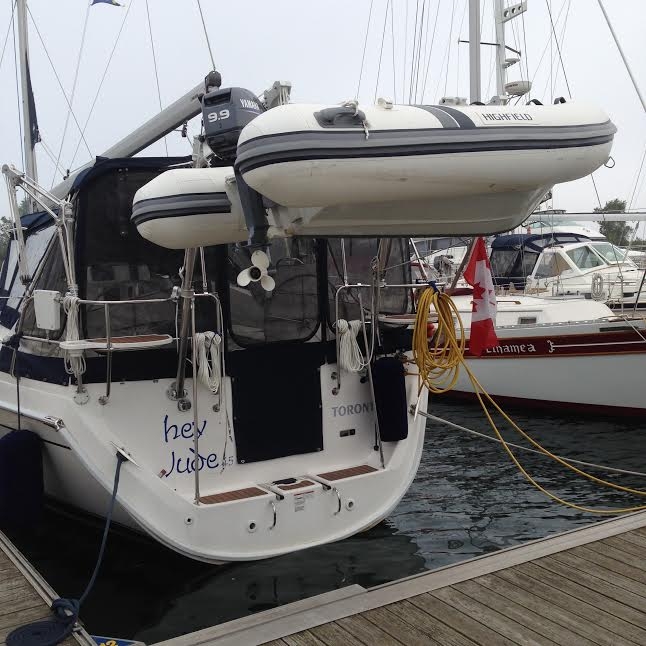

1900 Rotating Davits (Capacity of 300 Lbs.)

Model 1900 Rotating Adjustable Angle Davits: Heavy-Duty, Versatile, and Precision-Engineered

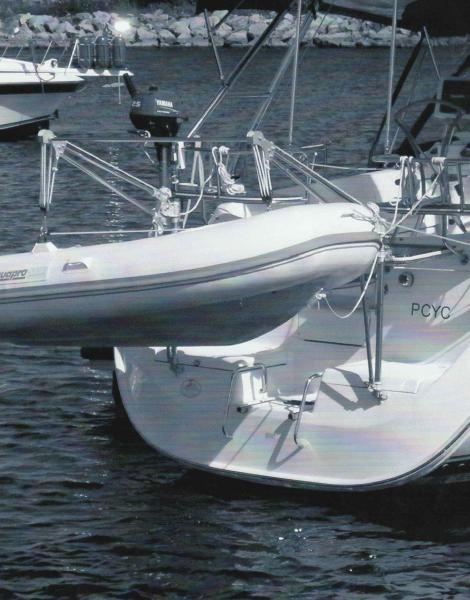

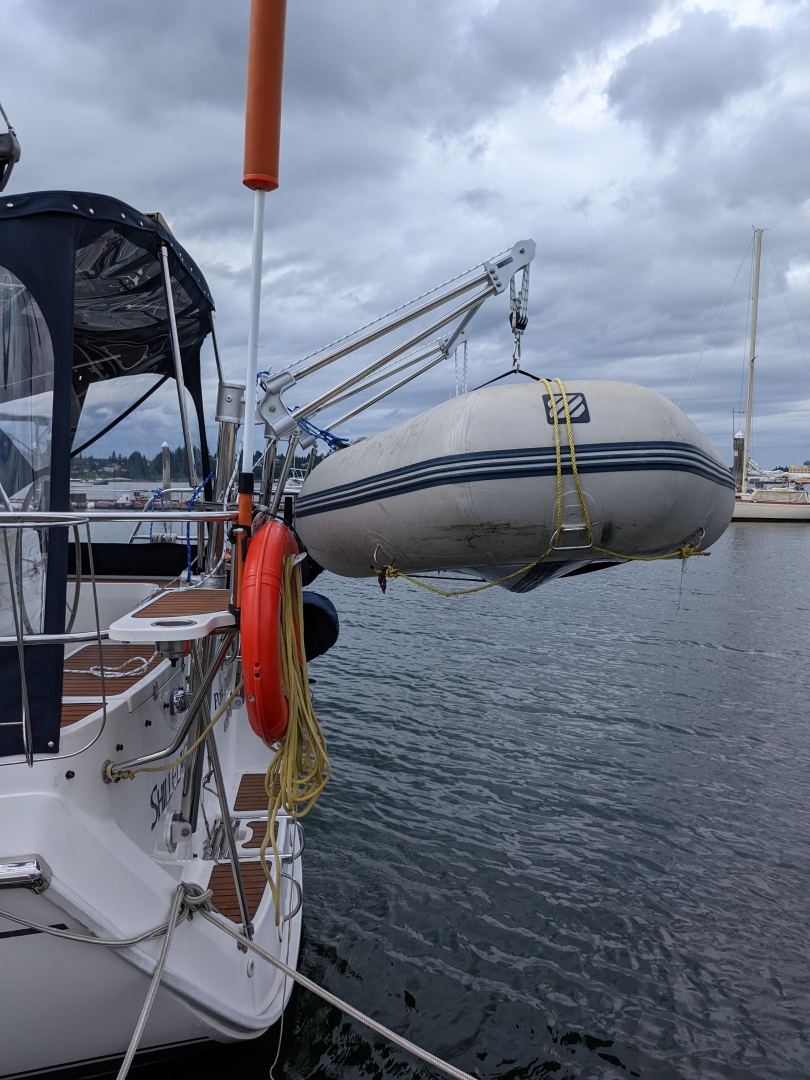

The Model 1900 Rotating Adjustable Angle Davits are the ultimate solution for boaters who demand strength, flexibility, and superior lifting performance. Built to handle larger loads, these davits are ideal for 11’ Rigid Inflatable Boats (RIBs) with motors up to 15 HP, offering unmatched reliability and adjustability.

Built for Strength and Reliability

• Premium Materials:
  Crafted with 316 Stainless Steel and Bright Clear Anodized AlMag-535.5 Castings, ensuring exceptional durability and resistance to corrosion in harsh marine environments.
• Heavy-Duty Components:
  • 1-½” Heavy Wall Main Upright (Standpipe) for superior stability and strength.
  • 1-¼” Solid Reinforced Lifting Arms for dependable performance.

Key Features

Adjustable Angle Design:

• Fine-tune the davit angle using the adjustable spline and independent compression strut, optimizing for either maximum height or reach.
• Adjustments are made in 3-degree increments, ensuring precise control.

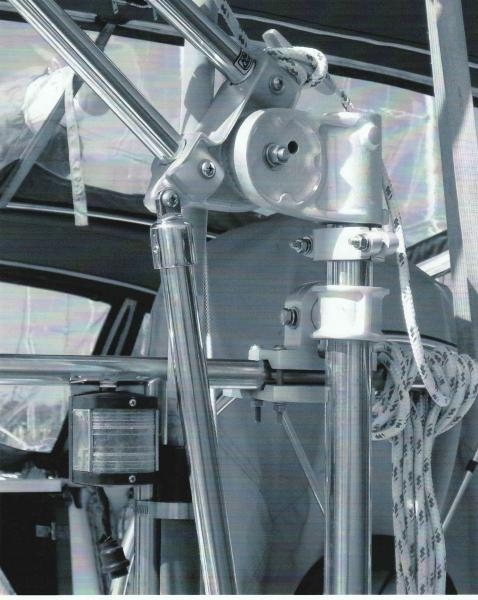

Innovative Support System:

• The independent compression strut relieves 40% of the load from the rail or upper mounting surface, providing enhanced stability.
• Locking Collar prevents the davits from swinging recklessly when not under load, ensuring safety and ease of use.

Compact and Fully Removable:

• The world’s most compact davit system, designed for easy removal and streamlined storage when not in use.

Specifications

• Safe Working Load:
  • 300 lbs. per pair, perfect for lifting an 11’ RIB with a 15 HP motor.
• Height and Reach:
  • Max Height from Base: 48" (at 36" reach).
  • Max Reach from Rail: 42" (at 40" height).
• Product Weight: 50 lbs. (pair).

Davit Kit Includes

• 40” Lower Standpipe for enhanced stability and performance.
• 7:1 Purchase Ratio Viadana Block and Stainless Carbide Hook for smooth and controlled lifting.
• 70 ft. of 5/16" NOVABRAID™ Line, offering strength and durability.
• Pre-Rigged Davit Arm for immediate use.
• Lower Base Casting that swivels to mount on flat or angled surfaces.
• Rail Clamp adjustable for 7/8” - 1-¼” Rails, or swivel base for mounting on decks, transoms, docks, or pilings.
• Stainless Mounting Hardware for secure and long-lasting installation.
• Two-Year Warranty for peace of mind.
• Additional optional increased height and reach available

Easy Installation

• Requires only a hacksaw, Philips screwdriver, and 7/16” wrench for setup.

Why Choose the Model 1900 Rotating Adjustable Angle Davits?

• Precision Adjustability: Fully customizable height, reach, and angle to suit your specific needs.
• Heavy-Duty Performance: Built to lift larger inflatables and heavier loads with ease.
• Innovative Support: Compression strut and locking collar ensure safe and stable operation.
• Compact and Removable: Streamlined design allows for easy removal and storage when not in use.
• Complete Kit: Includes all necessary components for immediate installation and use.

Enhance Your Boating Experience

The Model 1900 Rotating Adjustable Angle Davits deliver the strength, flexibility, and ease of use required for demanding marine applications. Perfect for larger inflatables and heavier equipment, these davits are built to perform in the toughest conditions while ensuring user-friendly operation.

Contact us today to learn more or place your order. Let the Model 1900 transform your lifting capabilities and elevate your boating adventures!

• 300Lb. Safe working Load
  • Ideal for an 11' Rigid Inflatable Boat (RIB), With 15 HP Motor
•  Rail Clamp and Base Included

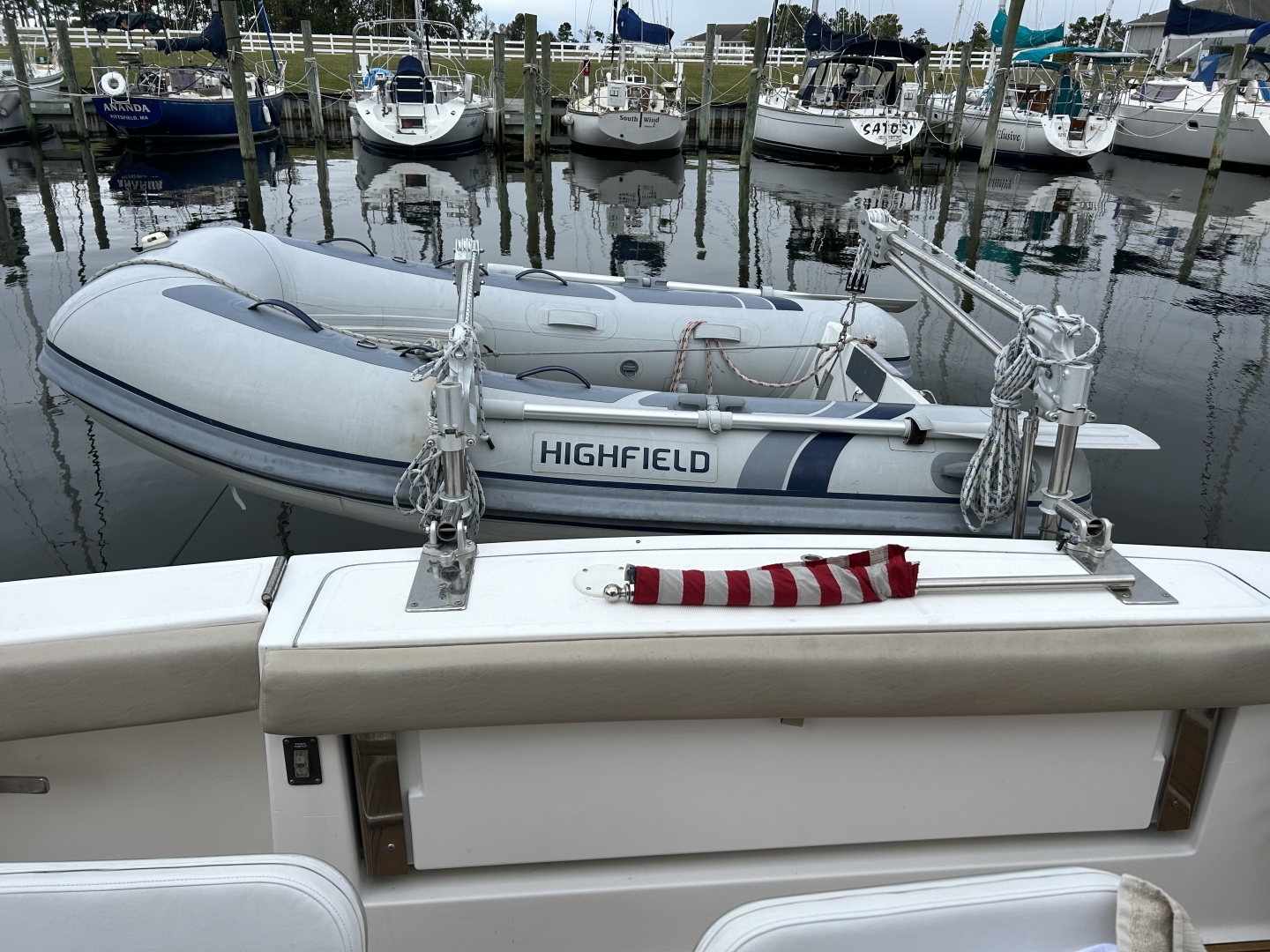

  • The included mounts are fully adjustable and change angle for mounting on Decks, Toe-Rails, or Transoms.
• 40" of Height and 36" of Reach - Adjustable Angle allows you to optimize for Max Height OR Max Reach
  • Max Height from Base: 48"   <@ 36" Reach>                    Max Reach from Rail: 42"   < @ 40" Height>
• Block and Tackle included with each davit
• Additional Height (longer Standpipe) Available

• The worlds most compact davit suited for ANY boat, and is FULLY REMOVABLE
• Easy to Install - Hacksaw, Philips Screw Driver and 7/16" Wrench are the only tools required
•  Product Weight: 50 Lbs. (Pair)


Rotating Davit Design Rotates on advanced Teflon Sleeves for ease of use
