4x14" Double Ftame Port

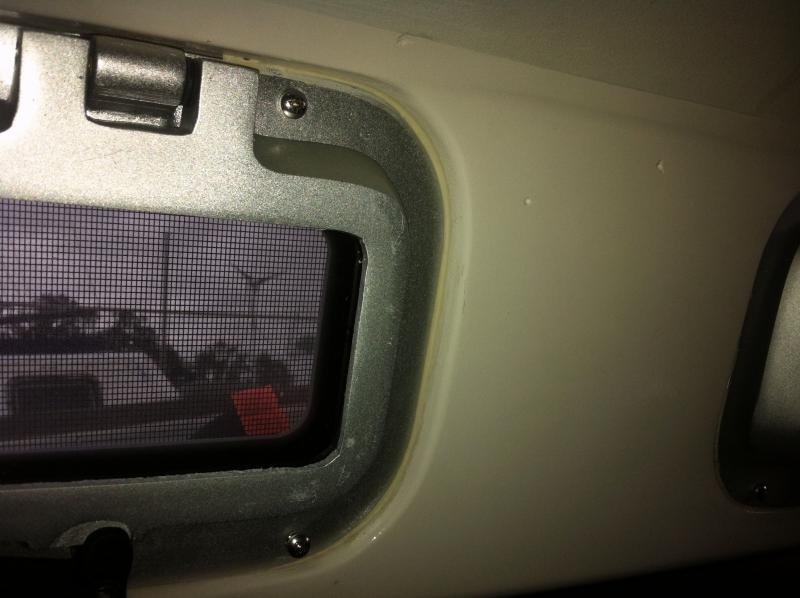

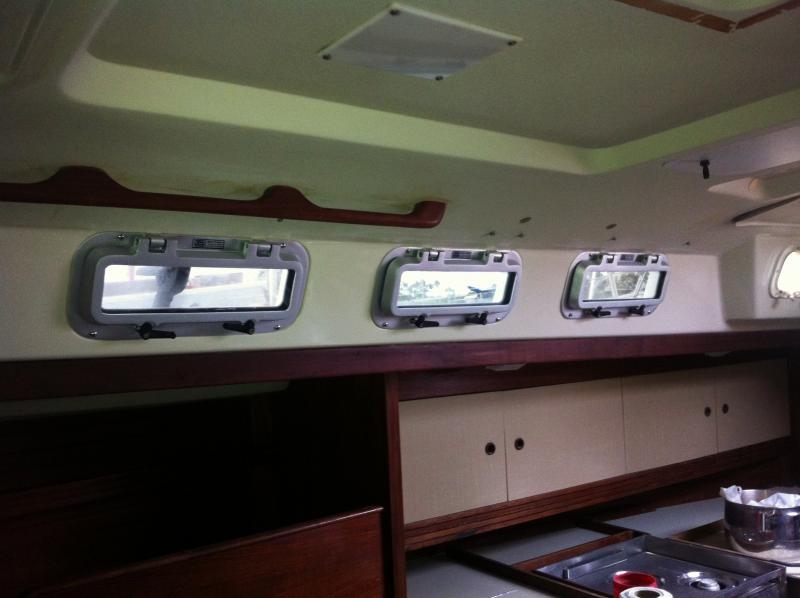

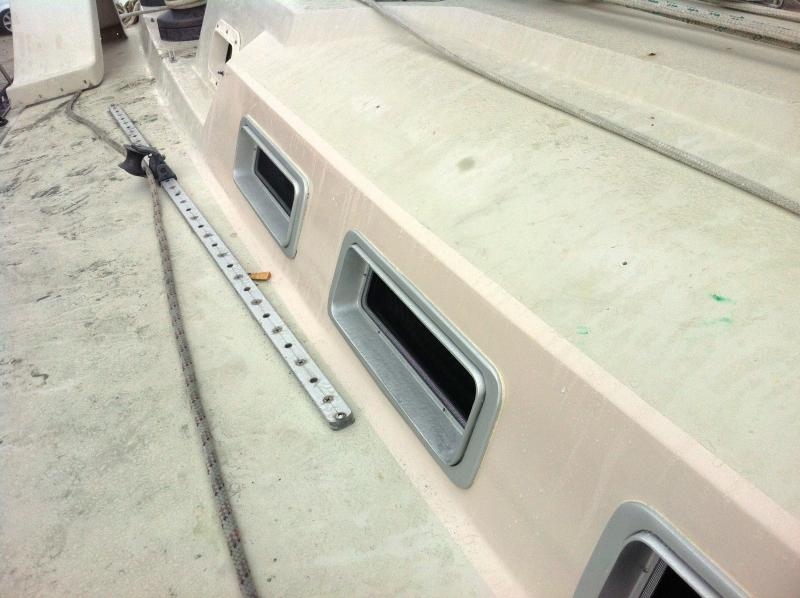

505B Double Frame Port fully cast Port Extremely rigid construction actually strengthens the deck Alloy is stronger than Stainless Steel , Lighter than Aluminum and will NEVER Corrode Standard Screen and Outer Trim Ring Included Opening dimension 4" x 14" (10.2 x 35.6 cm) Flange dimension 7"x 16 5/8" (17.8 x 42.2 cm) Cutout dimension 4 3/8"x 14 5/8" (11.1 x 37.1 cm) Spigot length dimension 11/2" (3.8 cm) Fits hull thickness from 1/4" to 2 1/4".

The 505 port is designed for offshore conditions.

Features of the 505 double frame port:

• Two year warranty.
• Fits wall thickness from ¼" to 1½" - Outter trim ring will conform to the shape of your hull even if not flat.
• All construction materials are of non-corroding material.
• Standard clear anodized finish
• Screen included.
• Self draining.
• Watertight and extremely durable.
• 3/8" acrylic glazing.
• Predrilled for easy installation.
• Opening section is self supporting.

Options

• 2¼" (5.7 cm) spigot ring available for all models except 505B
