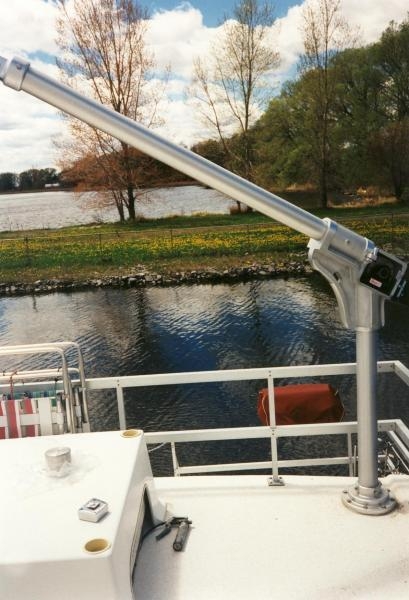

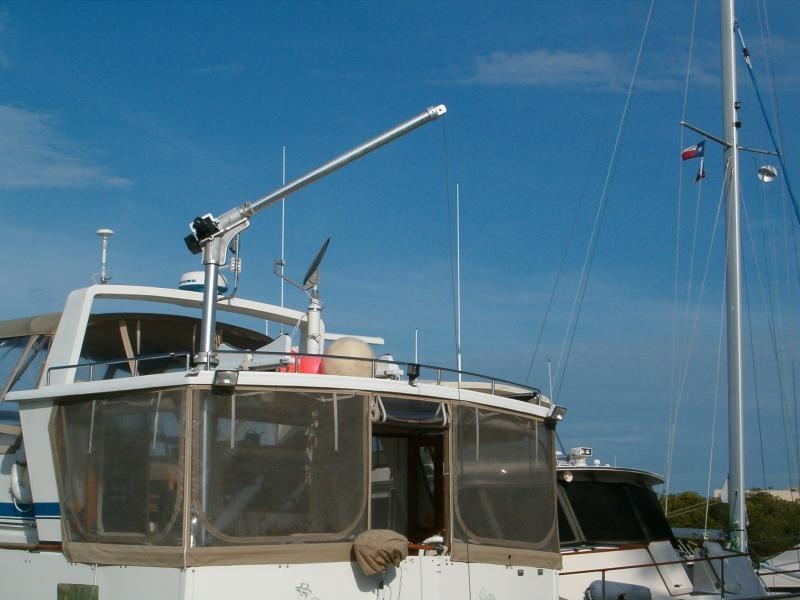

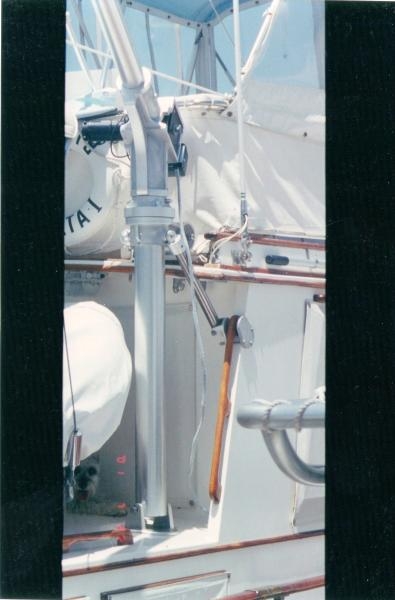

Model 6500R Rotating Crane

The Model 6500R Rotating Crane is the ultimate solution for heavy-duty marine lifting, designed to handle the most demanding tasks with ease. Whether you're lifting inflatable dinghies or other heavy equipment onto fore decks, transoms, or bridge decks, this crane combines exceptional strength, effortless operation, and a compact, collapsible design.

Key Features

Exceptional Lifting Capacity:
Safely lifts up to 650 lbs. (272 kg), making it ideal for large dinghies and other heavy loads.

Optimal Dimensions:
Offers 72" of height and 72" of reach, ensuring maximum versatility and clearance for various marine applications.

Effortless Lifting Options:

• Equipped with a 28:1 manual winch for precise and smooth lifting.
• An optional electric winch is available for enhanced convenience and efficiency.

Smooth Rotation:
Operates on a two-bushing rotation system, allowing for frictionless 360° movement and precise positioning.

Collapsible Design:
The crane is easy to collapse for storage, ensuring it can be stowed away conveniently when not in use.

Kit Includes Everything You Need

The Model 6500R Rotating Crane comes fully equipped with:

• 28:1 Manual Winch, galvanized with a lifting hook for exceptional lifting power. Optional electric winch
• 35 ft. of 5/16" NOVABRAID™ Line, offering strength and reliability.
• 90" Lower Standpipe (4-1/2" diameter) for added stability.
• Upper and Lower Surface Flanges (7" OD) for secure installation.
• Lower Base Casting (Swivel) for seamless and smooth rotation.
• Stainless Mounting Hardware for a durable and lasting deck installation.
• Two-Year Warranty to ensure long-term peace of mind.

Alternate Mounting Options

For added flexibility, the Model 6500R offers multiple mounting configurations:

• Deck Transom Mount (Offset Bracket): Features a 10" standard offset for unique mounting requirements.

Why Choose the Model 6500R Rotating Crane?

• Unparalleled Lifting Power: Designed for heavy-duty applications with a 650 lb. safe working load.
• Versatile and Reliable: Perfect for a range of lifting needs, from large dinghies to marine equipment.
• User-Friendly Design: Features smooth rotation, collapsible storage, and optional electric winch for convenience.
• Complete Kit: Includes everything you need for installation and immediate use.
• Trusted Quality: Backed by a two-year warranty, ensuring long-lasting performance.

Upgrade Your Vessel with the Model 6500R Rotating Crane

The Model 6500R Rotating Crane is the pinnacle of strength, functionality, and convenience for marine lifting. Whether managing large dinghies or heavy-duty equipment, this crane ensures safety, efficiency, and ease of use every time.

Contact us today to learn more or place your order. Let the Model 6500R elevate your marine operations with its unmatched performance and reliability!

Model 6500R Rotating Crane

Kit Includes:

• Purchase Ratio: 28:1 Manual Winch - Galvanized with Hook for lifting
• 35 ft/ of 5/16" NOVABRAID™ line
• 90" Lower Standpipe (4-1/2" diameter)
• Upper and lower surface flanges (7" OD)
• Lower Base Casting (Swivel)
• Stainless Mounting Hardware for deck
• Two Year Warranty

Alternate Mounting:

• Option for the Deck Transom Mount (offset bracket)

* The standard offset is 10"
