7x24" Double Frame Port

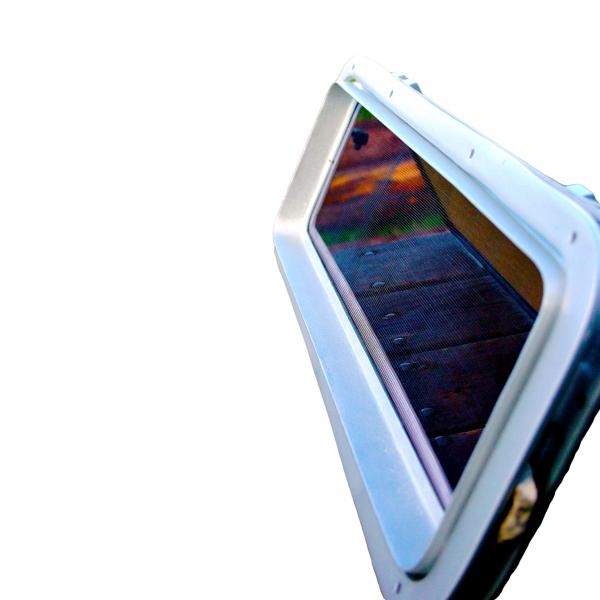

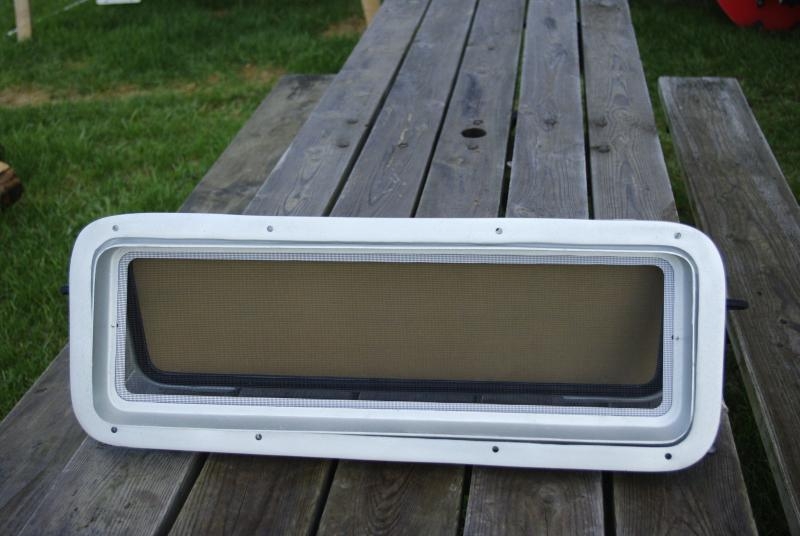

505E Double Frame fully cast Port Extremely rigid construction actually strengthens the deck Alloy is stronger than Stainless Steel , Lighter than Aluminum and will NEVER Corrode Standard Screen and Outer Trim Ring Included Opening dimension 7" x 24" (17.8 x61 cm) Flange dimension 9 1/2" x 26 3/8" (24.1 x 67 cm) Cutout dimension 7 7/8" x 25" (20 x 63.5 cm) Spigot length: 1 1/2" (3.8 cm)

The 505 port is designed for offshore conditions.

Features of the 505 double frame port:

• Two year warranty.
• Fits wall thickness from ¼" to 2¼". Wall can have slight curve since outer ring will bend.
• All construction materials are of non-corroding material.
• Standard clear anodized finish
• Screen included.
• Self draining.
• Watertight and extremely durable.
• 3/8" acrylic glazing.
• Predrilled for easy installation.
• Opening section is self supporting.

Options

• 2¼" (5.7 cm) spigot ring available for all models except 505B
