Arches and Hardtops / Boat Hardtops /

Our boat hardtops are fully customizable with options such as wind generator mounts, 250lbs or 300lbs davits / cranes and many more customized designs.

Items are Billed in CAD$
Exchange Rate: USD$1.00 = CAD$1.328
Gusset Support USD$0
"Rib Casting"
Build your Own Hardtop
Castings sold per piece
1"x2Tube join to 1.90"
Includes Top Plate
USD$65
"Corner Casting"
Build your Own Hardtop
Join 1-1/2" Sch40 (1.90") tubes at corners
Sold as a Pair (Each Corner)
USD$67.5
.090" Fiberglass Sheet
Comes in a Roll!
48" Wide x ___ Length
per Square foot
USD$3
Extruded C-Channel Track
Standard Tracking to add enclosure
Nicely Trims Edge of Hardtop
Sold per Foot, Anodized
USD$3.5

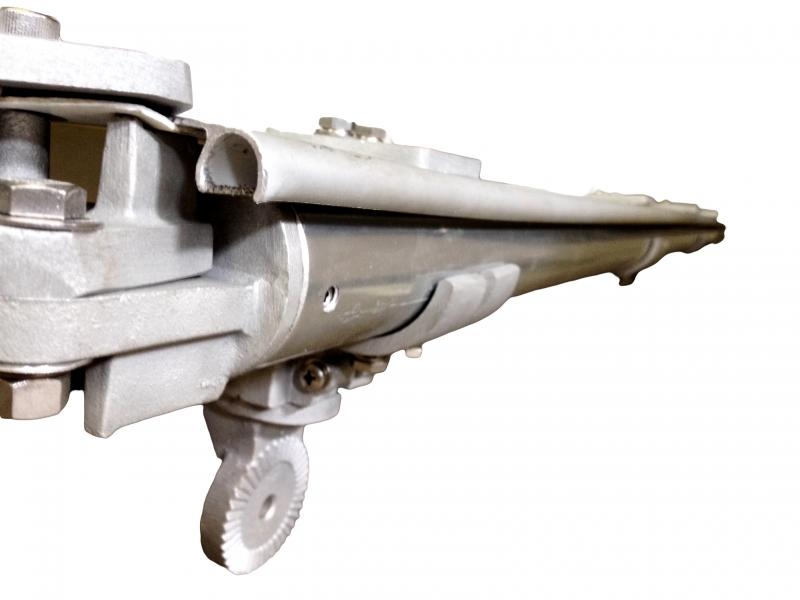

"Leg Casting"
Build your Own Hardtop
Joins a "Rib Casting" to a 1.90" Tube via a adjustable Spline
Set Leg to any Angle
Support Hardtop in Air
Angle/ Slope tubes for greater support
Sold as a Pair (one for hardtop, one for the Tube-Leg)
USD$67.5
Front Support Casting
Supports Track and Fiberglass
Joins Front edge of hardtop to fiberglass
Similar to Rib Casting, but modified for Front of Hardtop
USD$70
"T Casting"
Creates grid pattern under Hardtop
Joins 1x2" Ribs to fore/aft running supports (1x2")
USD$101
Rib tube Material
1"x2" Anodized Aluminum
6061 T6 Alloy
Per Foot
Can be bent/ Curved
USD$64
Edge Tube Material

1-1/2" Sch 40 Anodized Aluminum (1.90" od)

6061 T6 Aluminum

Can be bent/ Curved
Per Foot
USD$45
Foot Casting
Sold each (Male and Female)
3-3/4" Diameter
Fits inside 1.90" Tube
USD$200

Every boat is different, even the same model of boat from year to year differs. Because of this, there is no easy “system in-a-box” solution for boat hardtops – Don’t be fooled!

‘Pre-Fab’ systems are a thing of the past. It is impossible to get a good-looking hardtop system to fit your boat when you don’t have any decision on the dimensions. Atkins & Hoyle Ltd. is simply the best because there is no stronger, more customizable system in the world. Every other company cuts corners, and tries to save money by inexpensively bending and welding their systems together, not Atkins & Hoyle.

“My hardtop has been installed for more than 5 years, and has seen some pretty rough weather. Even with the wind gusting at 40+knots, I had no concerns about the strength of the system” – Eric.

Custom Solution

Every one of our hardtop systems is custom for your boat given the measurements.  Download the “Easy How-to Measure” guide attached to the Hardtops Measurement Form, which makes fitting a custom hardtop to your boat hassle-free. Simply print off the “Hardtops Measurement Form”, email or fax us a copy, and receive your free quote within a day! And if that is not easy enough for you if you live within 50km of us we offer on-site measurement from our trained professionals. So if you are in the Napanee, Belleville, or Kingston area – we would be happy to come down to your boat to help measure.

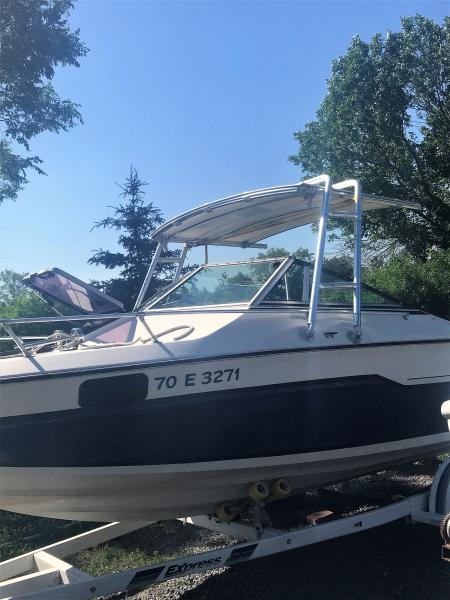

Our standard boat hardtops are built off an arch type system, which is a fully modular design for a custom fit. This is great when you are looking for a duel system to not only keep the sun and rain off the cockpit or deck, but also something, which can be used for later additions such as radar etc.

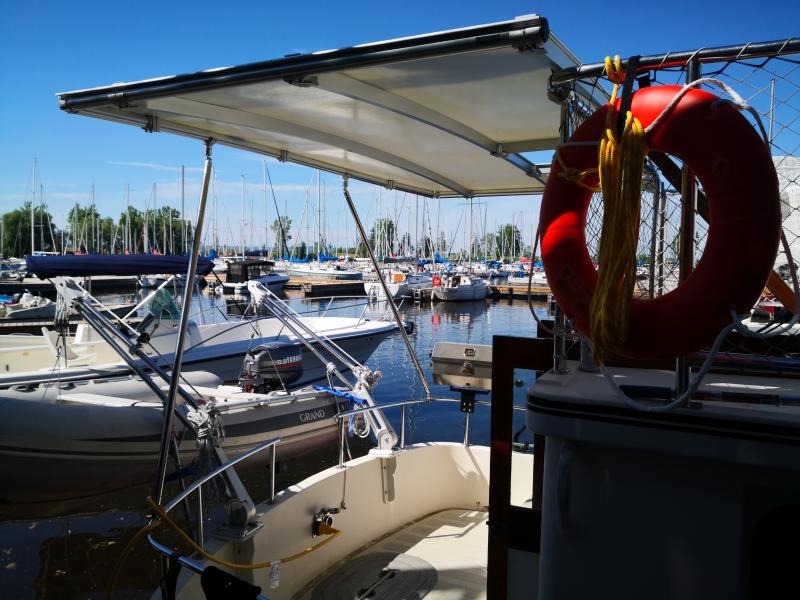

Atkins & Hoyle Boat Hardtops

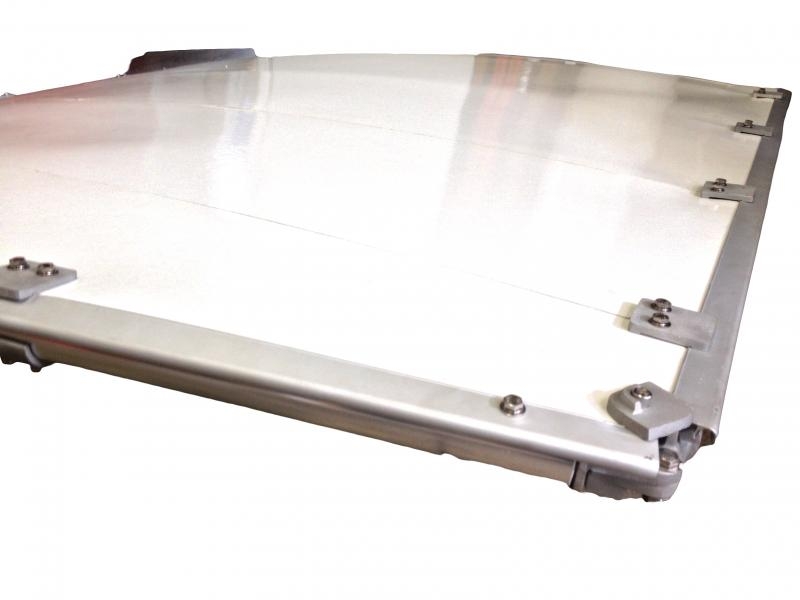

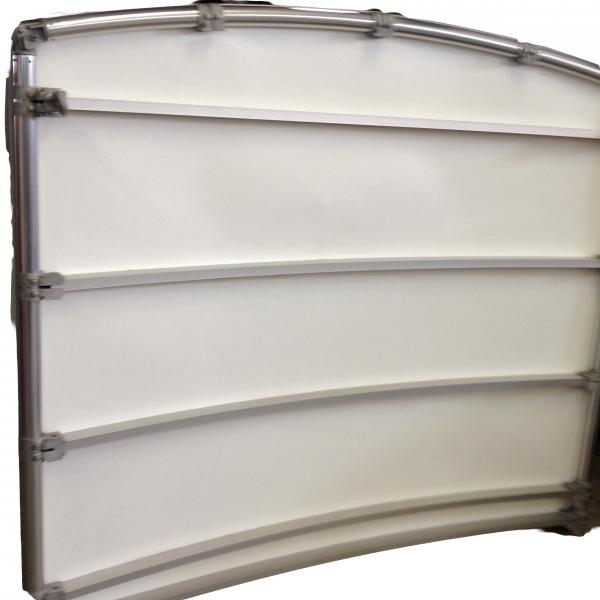

Bright polished and clear anodized aluminum is used to the support white fiberglass top, build to any size. We have yet to find a boat this doesn’t look good on!

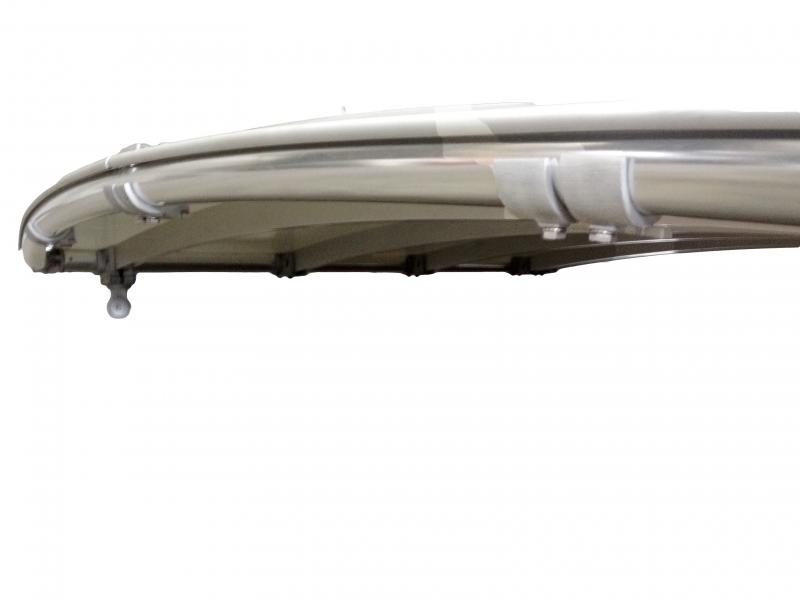

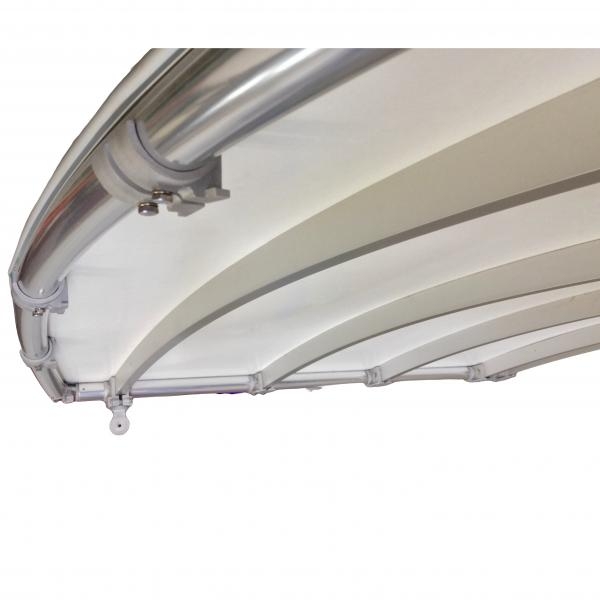

Atkins & Hoyle produces the highest quality product, no welding means the strongest design in the world; everything is joined together using our proprietary AlMag 35 castings, which allow for full adjustability.

Specifications

We quote based on a standard 77.5” x 50” hardtop (26.9 sq./ft.). Our modular design allows for any dimensional variation depending on the custom measurements you provide. Options include:

  • Wind generator adaptor kit
  • Solar panel mount
  • 200 pound davit system
  • Transom, port, and or starboard lights
  • Window track, for easy installation of enclosure

100% North American

Our company holds a keystone role in the economy. As part of a rare breed, we are one of a few remaining manufacturers who does not outsource any labor overseas. This keeps North American families employed during the more difficult times – this is something we feel strongly about.

Installation

Our universal and custom design makes mounting our hardtop on any boat easy. We are the manufacturer, we do not install. Assembly and installation happens on site.

Delivery

Shipping and handling will be added to your order depending where you boat. We ship worldwide.
