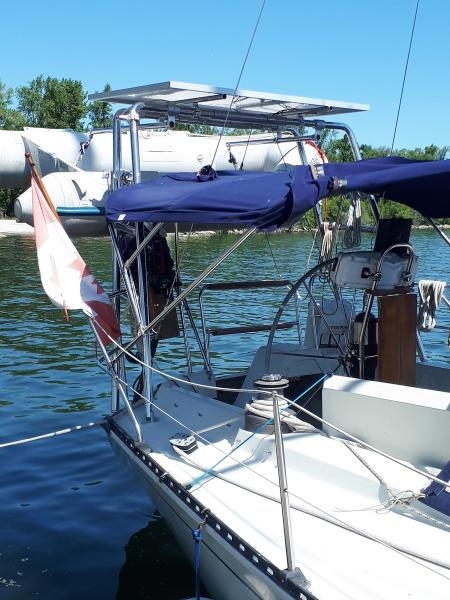

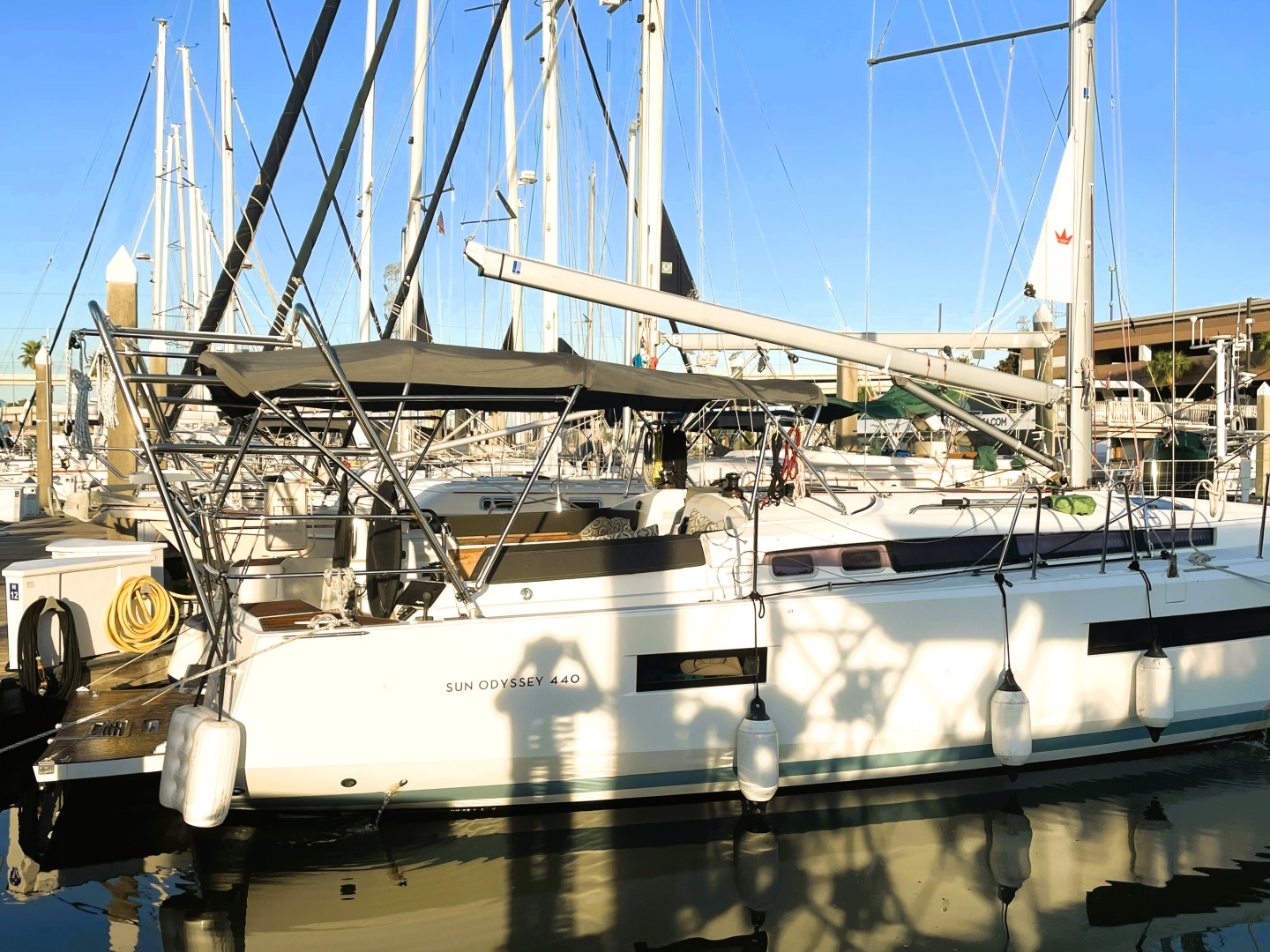

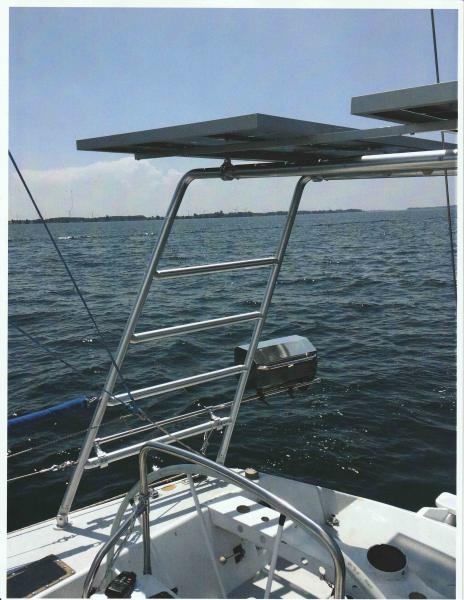

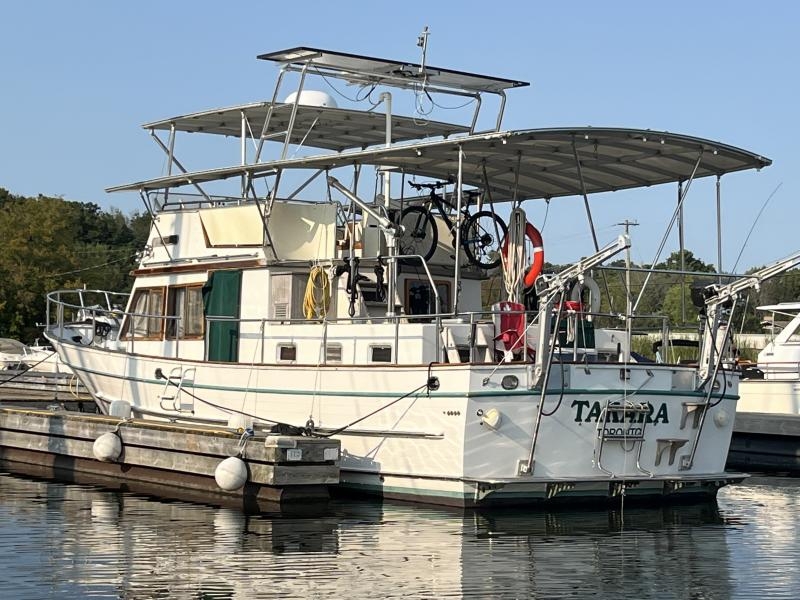

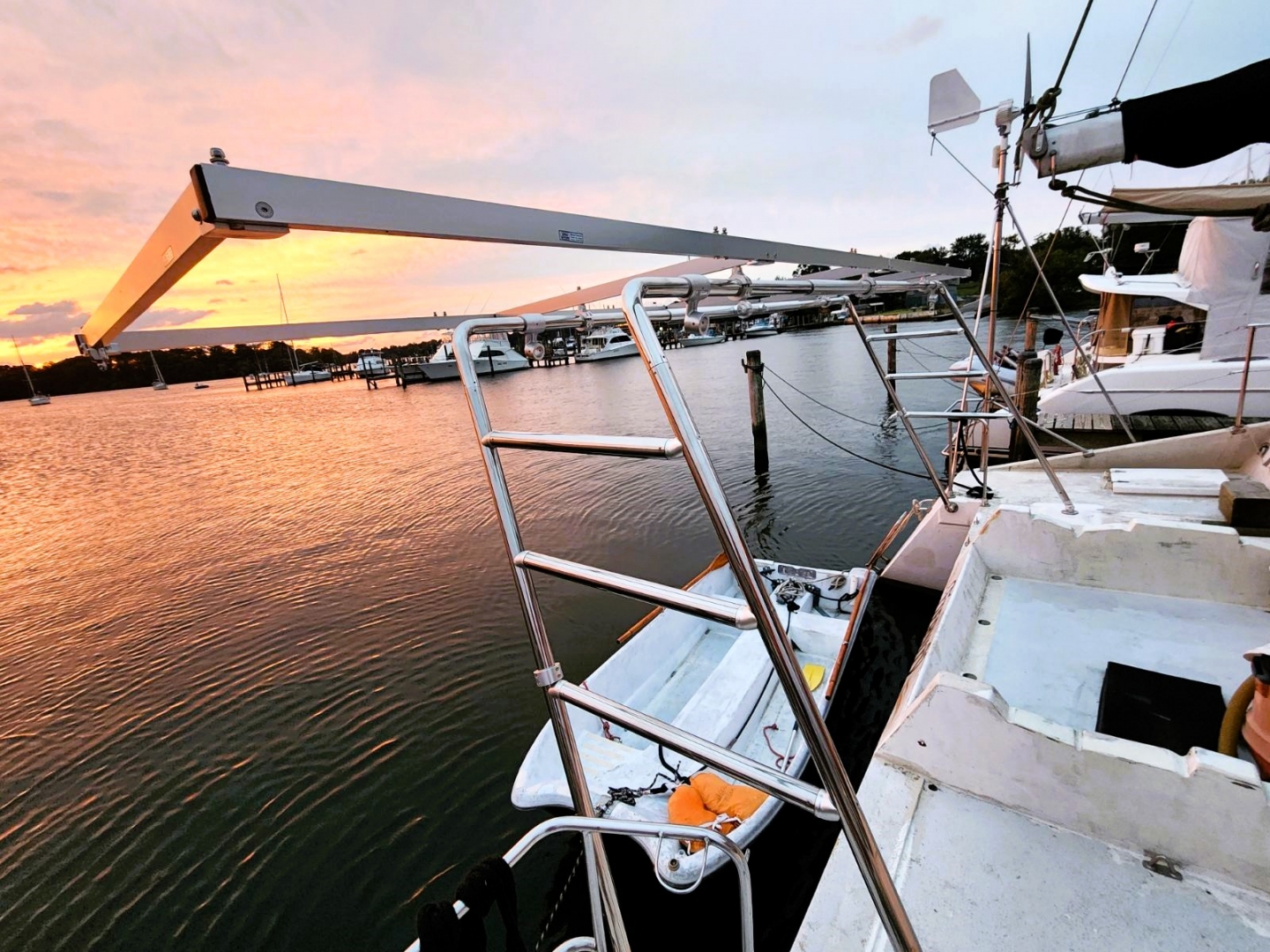

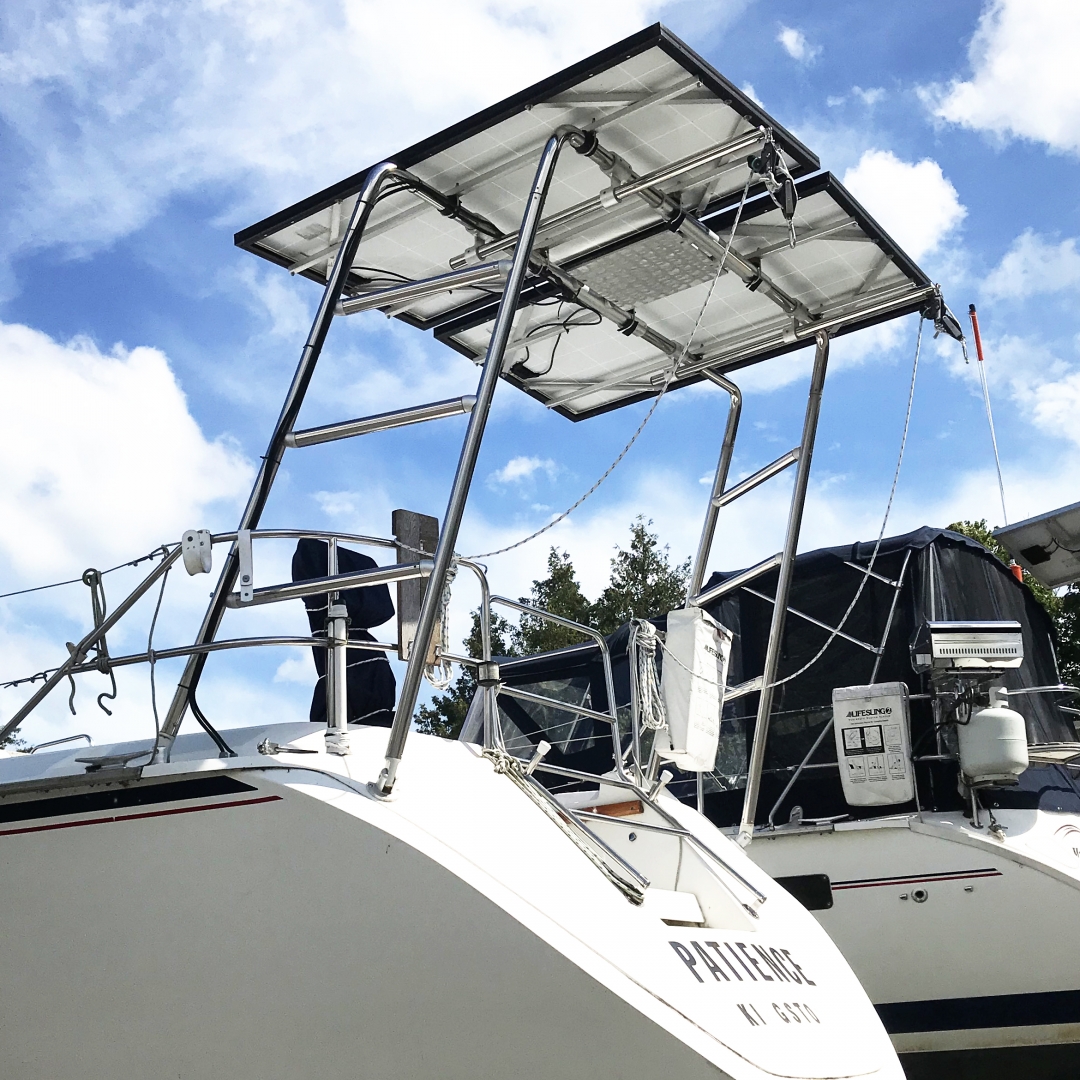

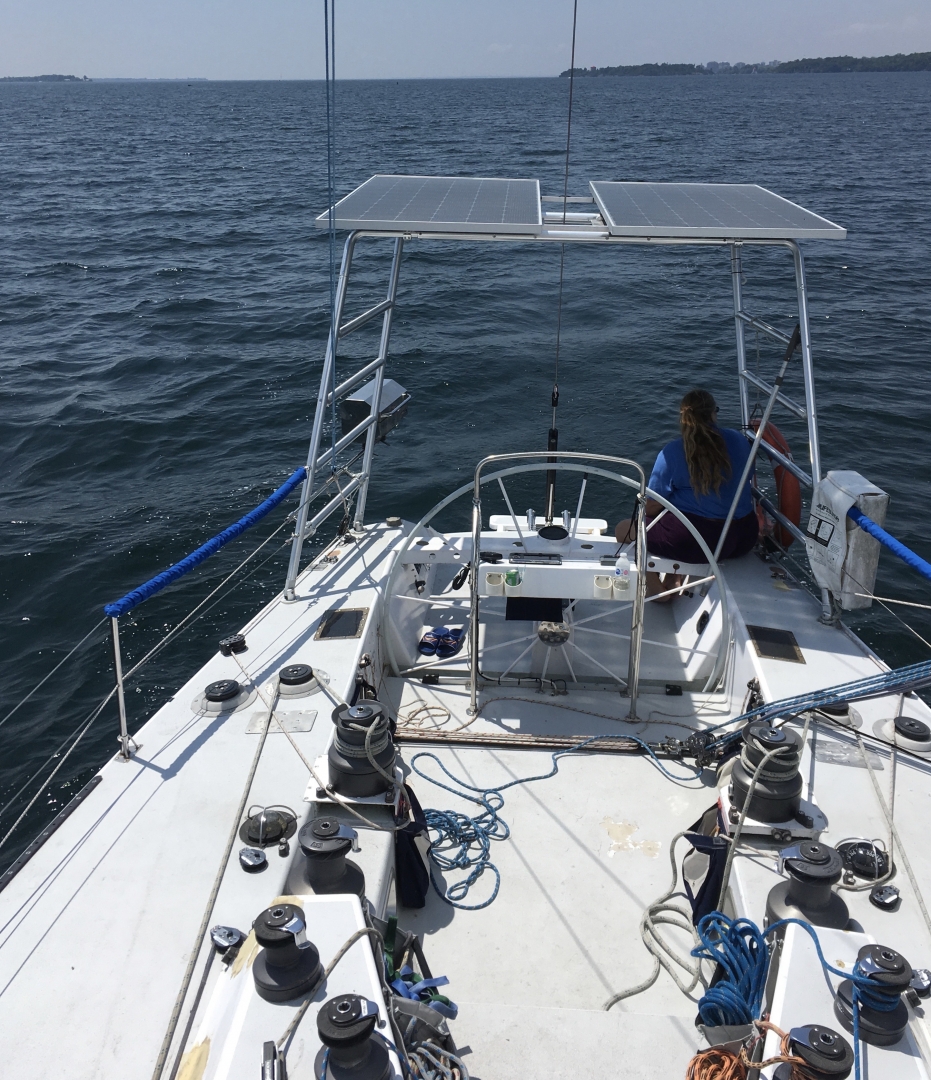

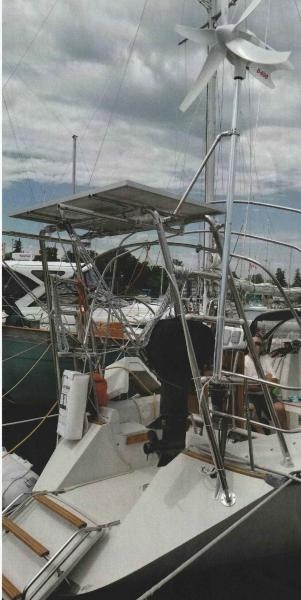

Solar / Radar Arch

Streamline Your Boat with Our Fully Customizable Marine Arch

Our marine arch is designed to maximize your boat’s functionality while offering durability, adaptability, and sleek design. Perfect for mounting essential equipment and tailored to your specific needs, this arch is a must-have for modern boaters.

Key Features

Multi-Functionality:

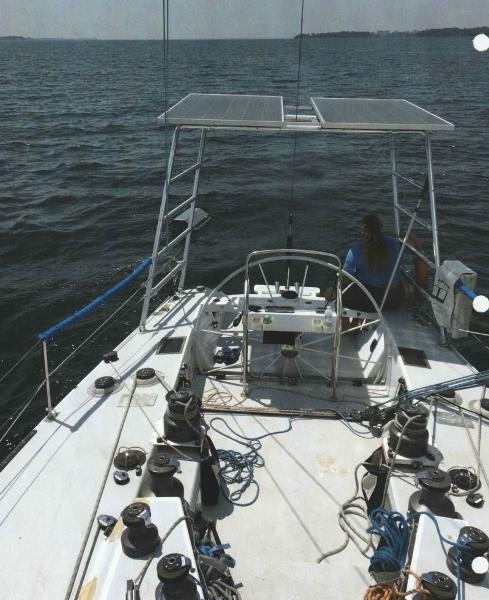

• Supports solar panels for renewable energy solutions.

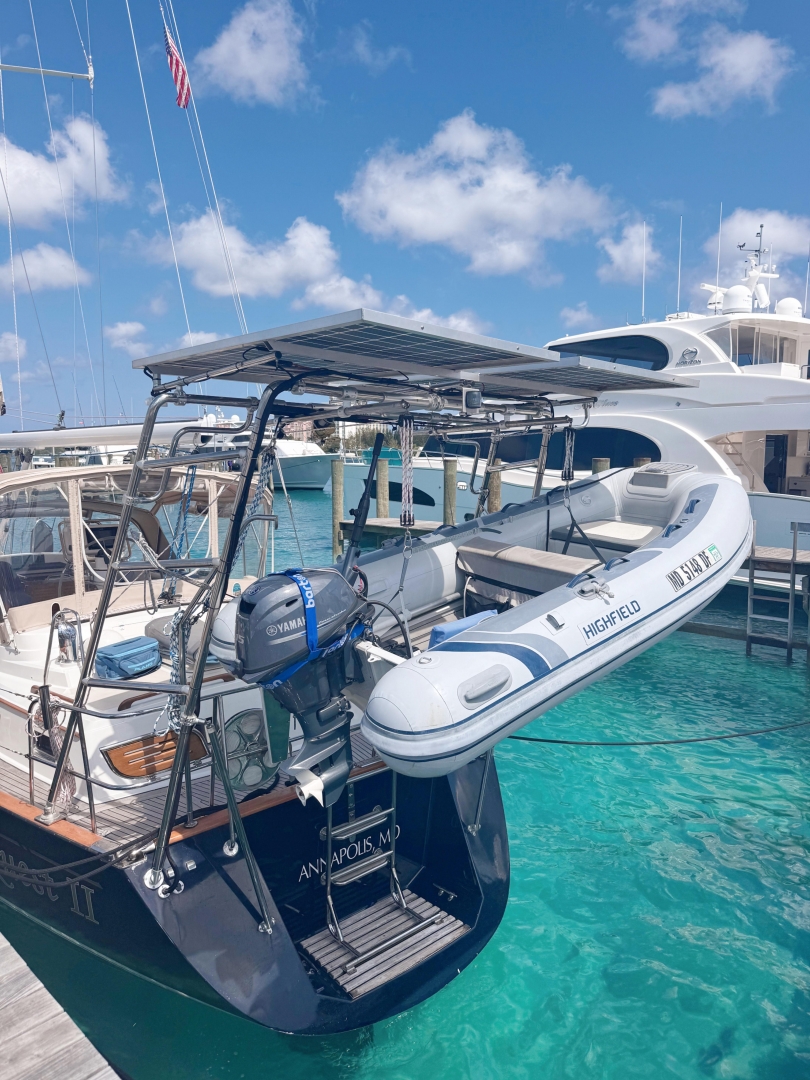

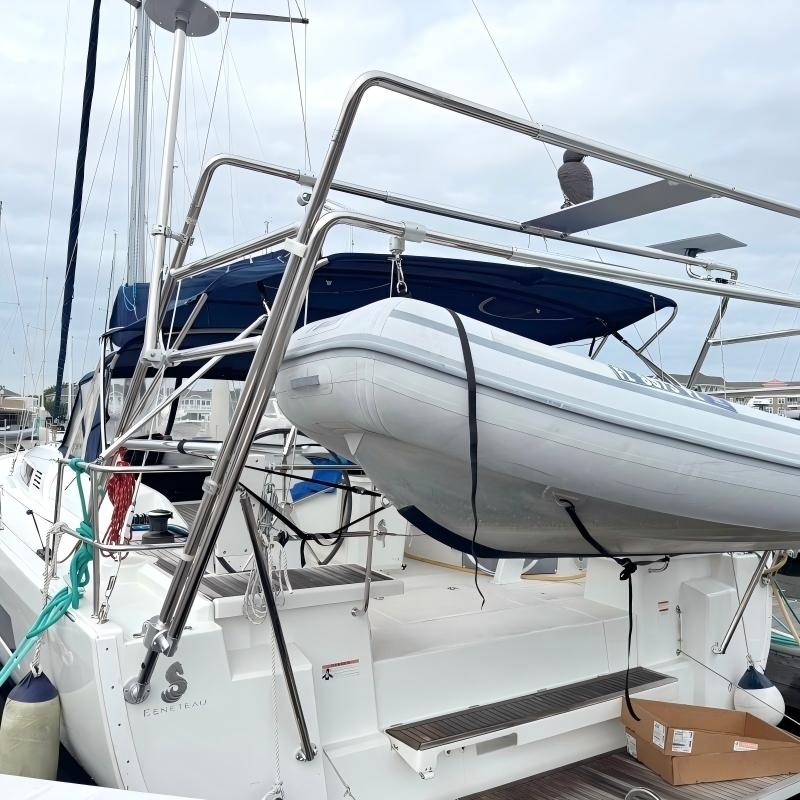

• Ideal for dinghy davits for safe and efficient lifting.
• Perfect for mounting antenna systems (Radar/Starlink).

Modular Design:

• Crafted with Atkins & Hoyle fittings, eliminating welds for superior flexibility and strength.
• Modular construction makes repairs and modifications simpler and more cost-effective.

Premium Materials:

• Available in anodized aluminum for a lightweight solution, weighing approximately 80 lbs.
• Option for 316L stainless steel, offering maximum durability with a total weight of ~130 lbs.
• Both materials are engineered to withstand harsh marine environments and resist corrosion.

Rugged Build:

• Constructed with 1.90" tubing (1-½" Sch40 or 1.90" 11Ga) for exceptional strength and reliability.

Adjustable Width:

• Designed to fit a wide range of vessels, the arch’s adjustable width ensures seamless integration into your boat's unique layout.

Specifications

• Material Options: Anodized Aluminum or 316L Stainless Steel.
• Weight:
  • Aluminum: ~80 lbs.
  • Stainless Steel: ~130 lbs.
• Tubing Dimensions: 1.90" (1-½" Sch40; or 1.90" 11Ga).

Upgrade Your Vessel with a Tailored Arch Solution

Whether you need an arch for solar panels, dinghy davits, or antenna mounts, our fully customizable marine arch offers a robust and versatile solution. With superior materials, modular construction, and adjustable design, this arch is built to last while enhancing your boat’s efficiency and style.

Contact Atkins & Hoyle today to learn more about how we can customize this marine arch to meet your exact specifications!

• 1.90" Outside Diameter Tube
  • 1-½" Schedule 40 Polished, Anodized,
    • 6061 T6 (aircraft grade) Aluminum
  • OR 1.90" 11 Gauge 316L Stainless Tube

• Bases are Adjustable to any angle
  • 3-¾" Outside Diameter
  • 4-hole (¼")

• Unprecedented Modular Design features Atkins Hoyle Castings
  • Sand Cast, AlMg-535 Alloy Polished Anodized
  • Stronger and more reliable than welds
  • Allows for quick shipping and assembly

• Easy to build a Custom Arch suited for YOUR boat
  • Have us modify:
    • overall height
    • overall width
    • height of each gusset, align with (or miss) your pulpit and pushpit
    • inward taper, change the standard 83°
    • and more!
