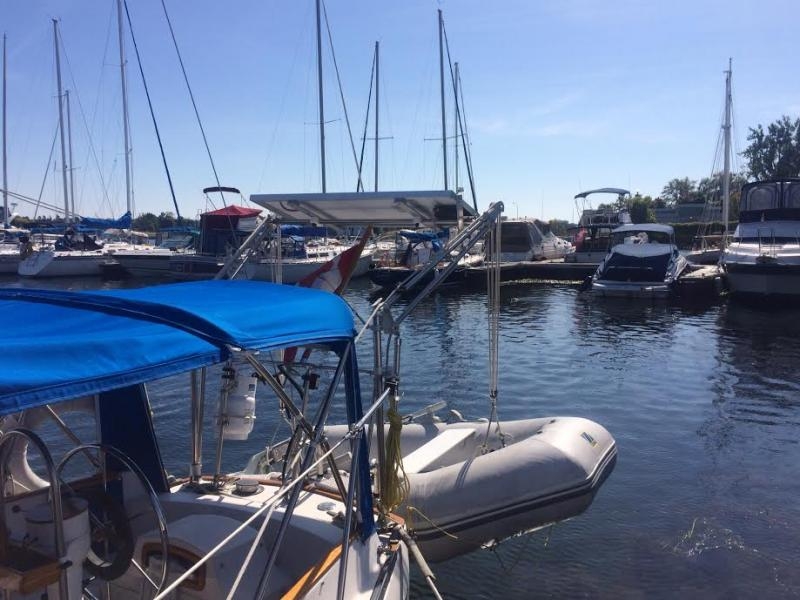

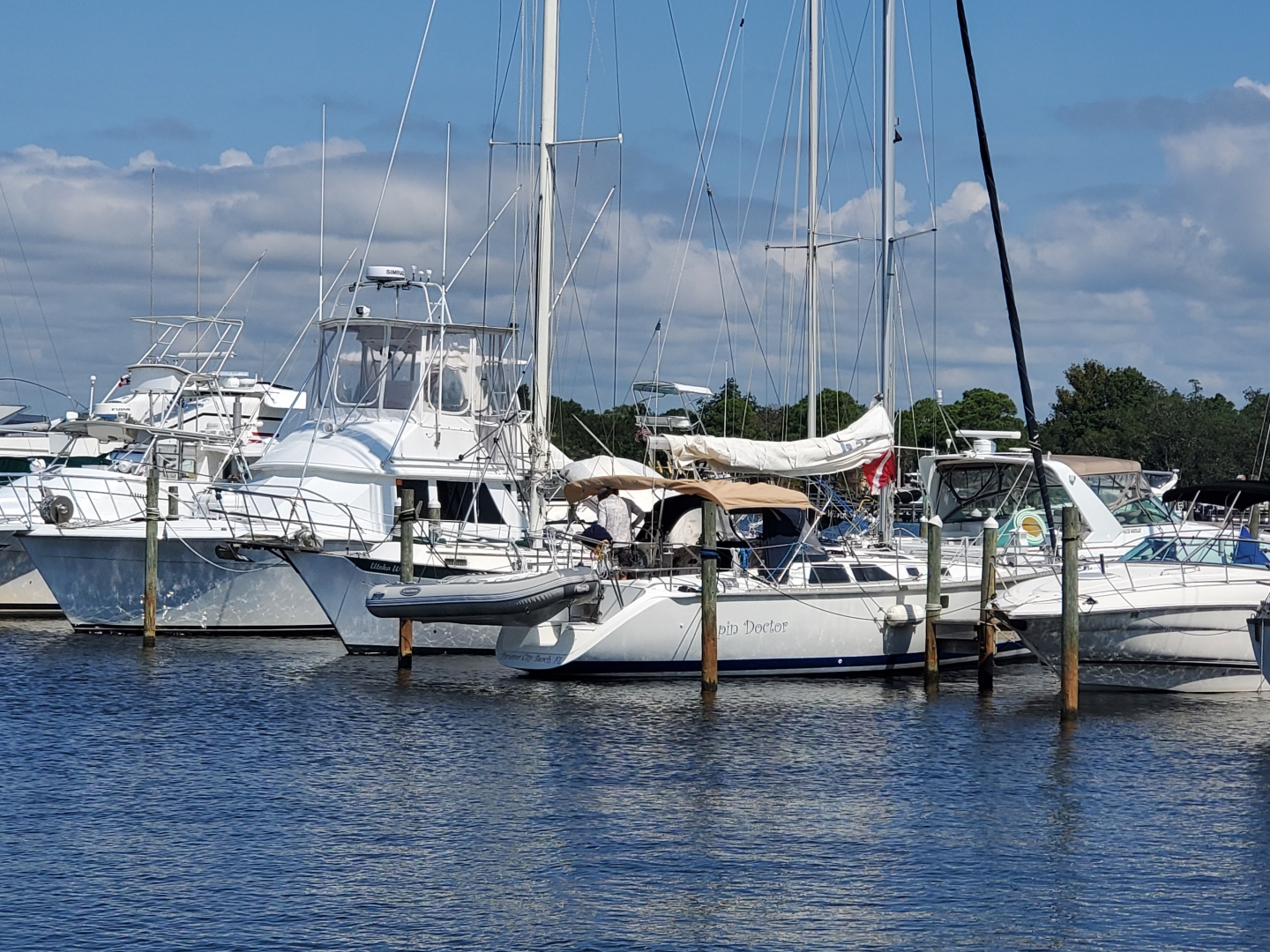

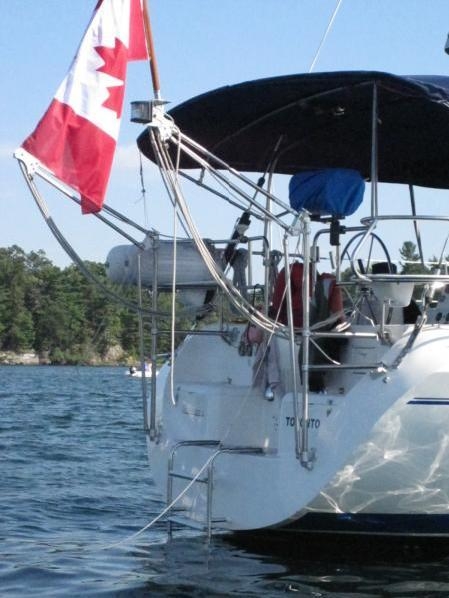

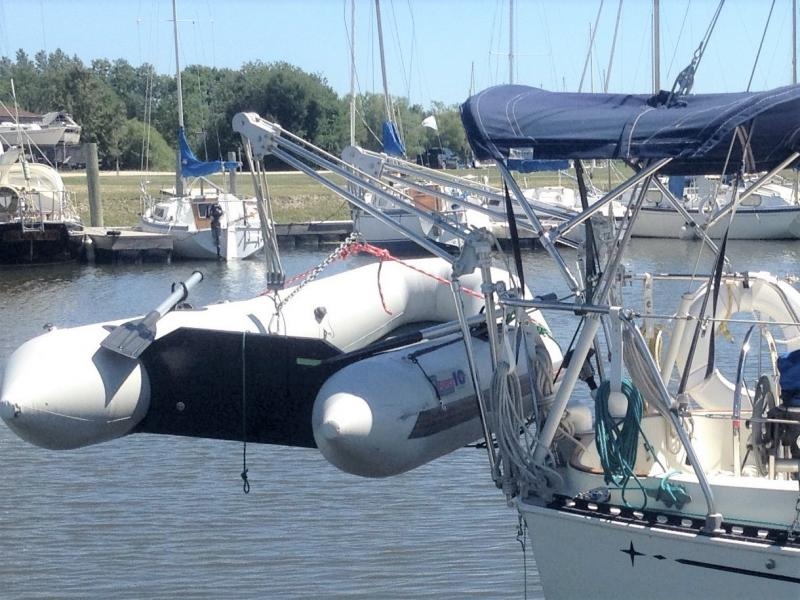

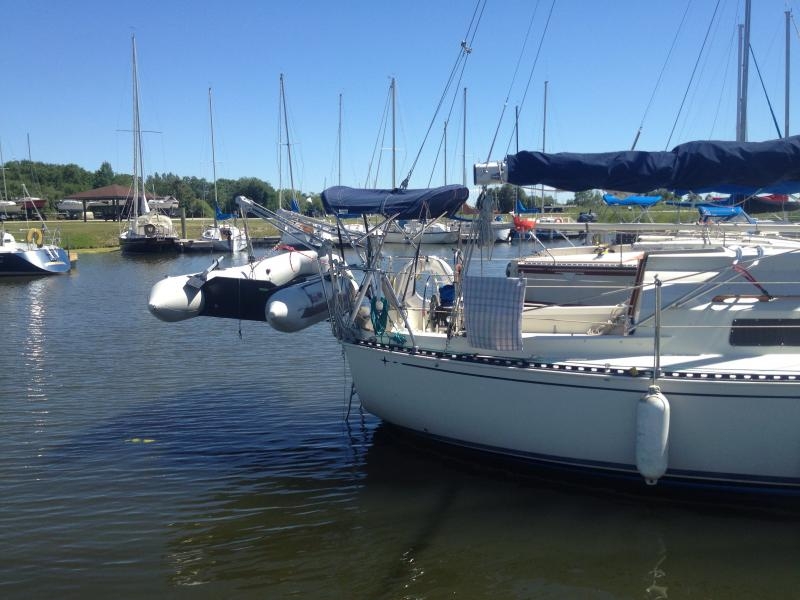

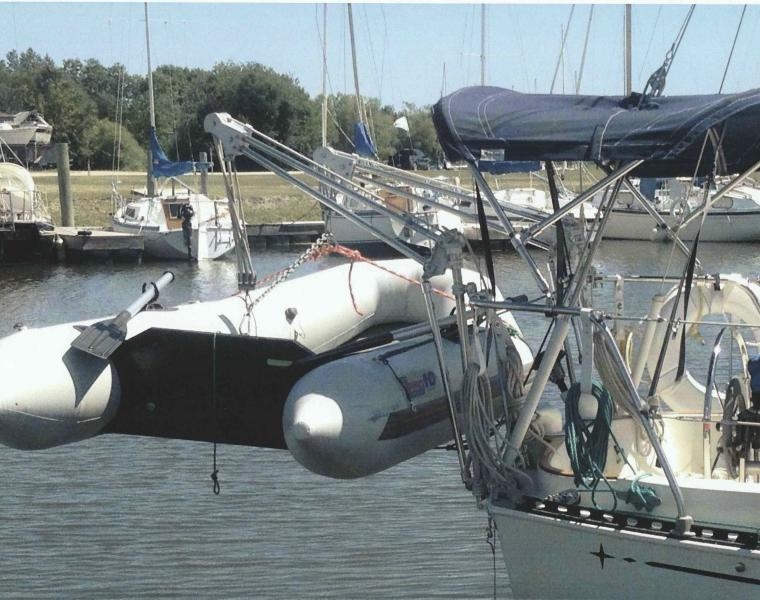

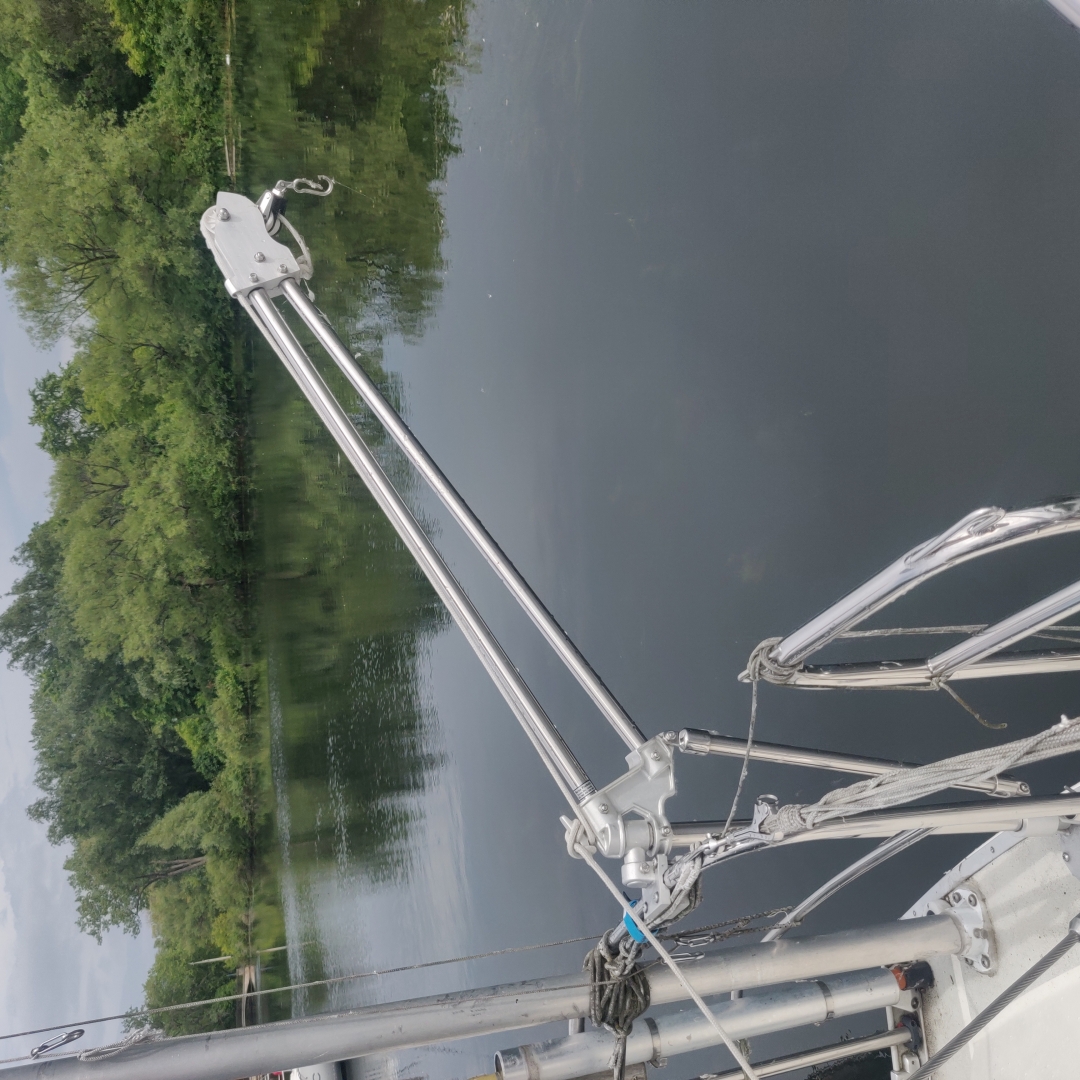

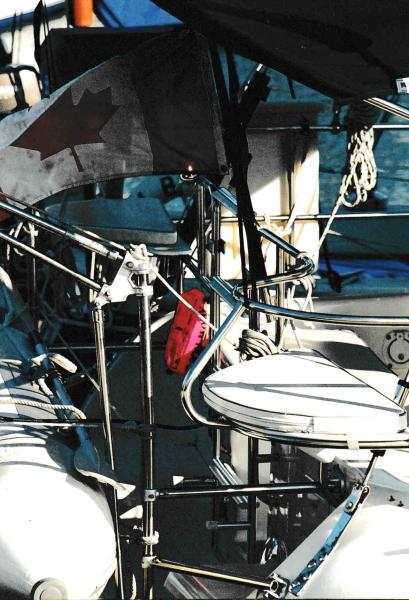

Model 1200 Rotating  Davits

How They're Built: 316 Stainless Steel and Bright Clear Anodized AlMag-535.5 Castings

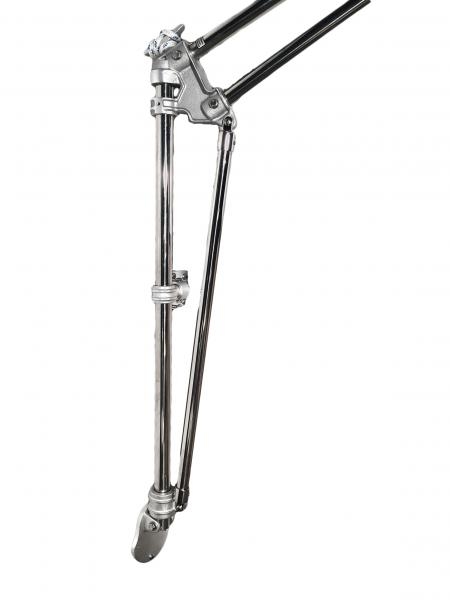

• 1-1/4" Heavy Wall Main Upright (Standpipe)
• 1" solid reinforced Lifting Arms

Davit Kit Includes:

• 34" Lower Standpipe
• Purchase Ratio: 6:1 Viadana Block and Stainless Carbide Hook
• 60 ft/ of 5/16" NOVABRAID™ line

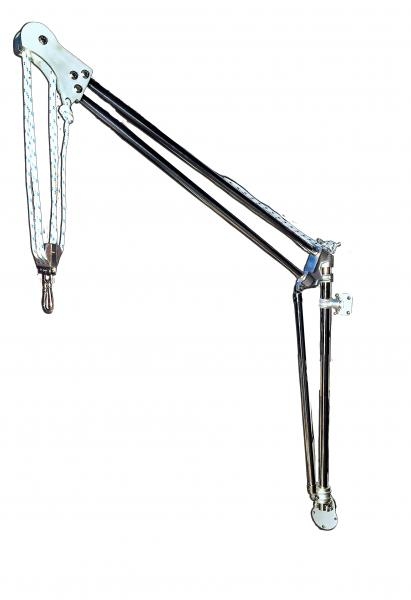

• Davit arm comes pre-rigged!
• Lower Base Casting will swivel to mount on any flat or angled surface
• Second mount will clamp to 7/8" - 1-1/4" Rails
    OR  Swivel to bolt onto any surface (Deck, Transom, Dock, or Piling)
• Stainless Mounting Hardware for deck
• Two Year Warranty

• 200Lb. Safe working Load

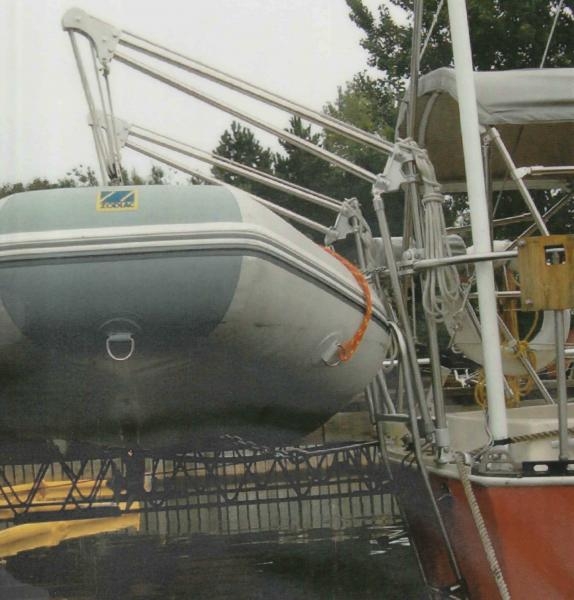

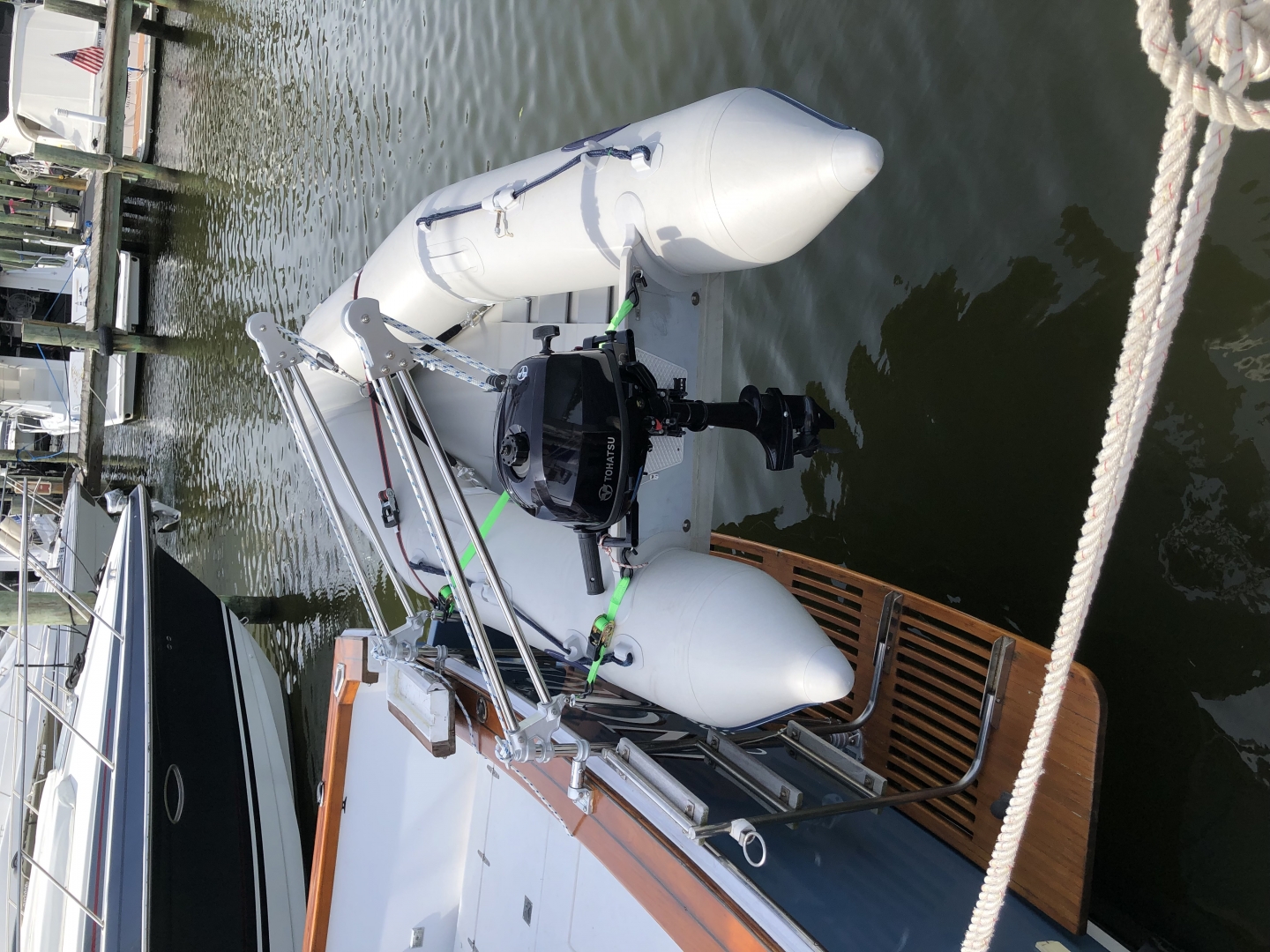

  • Ideal for an 8' Inflatable, With 5 HP Motor Safe Working
  • Load of 120 lbs. each or 200 lbs. for a Pair
•  Rail Clamp and Base Included
  • The included mounts are fully adjustable and change angle for mounting on Decks, Toe-Rails, or Transoms.
• 36" of Height and 36" of Reach
• Block and Tackle included with each davit

• The worlds most compact davit suited for ANY boat, and is FULLY REMOVABLE
• Easy to Install - Philips Screw Driver and 7/16" Wrench are the only tools required
•  Product Weight: 35 Lbs. (Pair)


Rotating Davit Design Rotates on advanced Teflon Sleeves for ease of use
