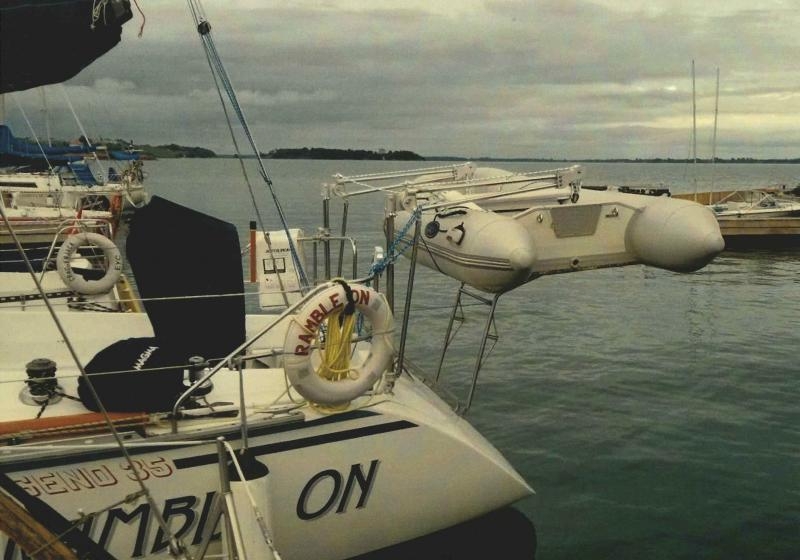

1400 Rotating Davits (Capacity of 250 lbs.)

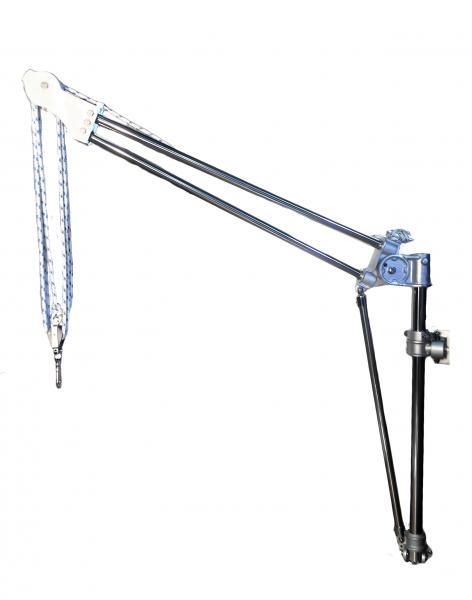

Model 1400 Rotating Adjustable Angle Davits: Versatile, Durable, and Designed for Precision

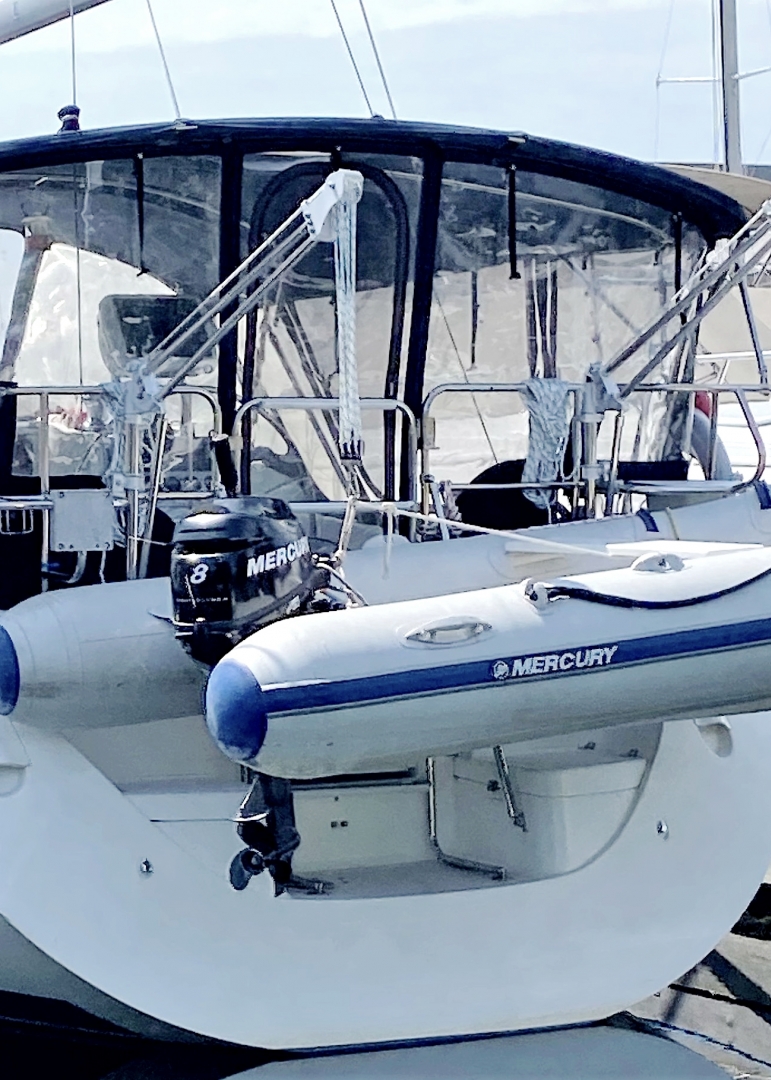

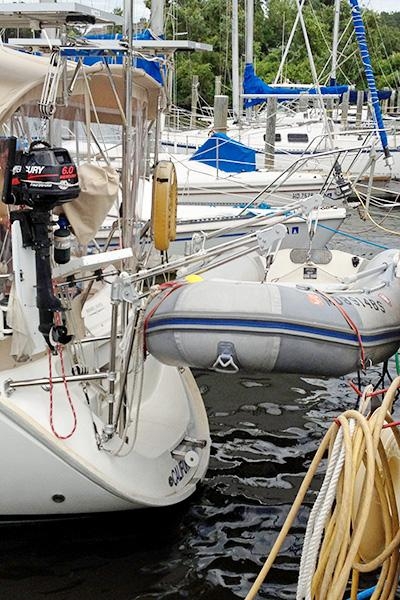

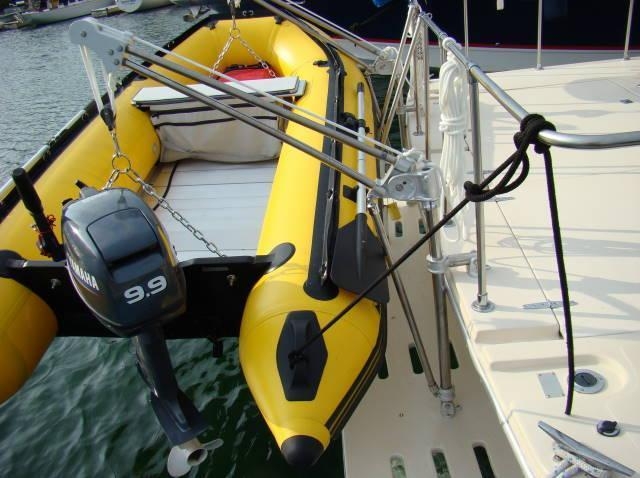

The Model 1400 Rotating Adjustable Angle Davits are built for boaters who demand flexibility, strength, and ease of use. Engineered with premium materials and innovative adjustability, these davits are ideal for lifting larger dinghies, tenders, or 10’ Rigid Inflatable Boats (RIBs) with motors up to 9.9 HP.

Key Features

Adjustable Angle Design:

• Fine-tune the davit angle using the adjustable spline and independent compression strut for maximum height or reach.
• Adjustable in 3-degree increments, ensuring precise customization to your needs.

Innovative Support System:

• The independent compression strut relieves 40% of the load from the rail or upper mounting surface, ensuring secure operation.
• Locking Collar prevents the davits from swinging recklessly when not loaded, adding safety and stability.

Compact and Fully Removable:

• The world’s most compact davit system, designed to be easily removed when not in use for streamlined storage.

Davit Kit Includes

• 34” Lower Standpipe for secure mounting.
• 7:1 Purchase Ratio Barton Ball-Bearing block and Stainless Snap Shackle for smooth and controlled lifting.
• 70 ft. of 5/16" NOVABRAID™ Line for durability and reliability.
• Pre-Rigged Davit Arm for quick and easy setup.
• Lower Base Casting that swivels to mount on flat or angled surfaces.

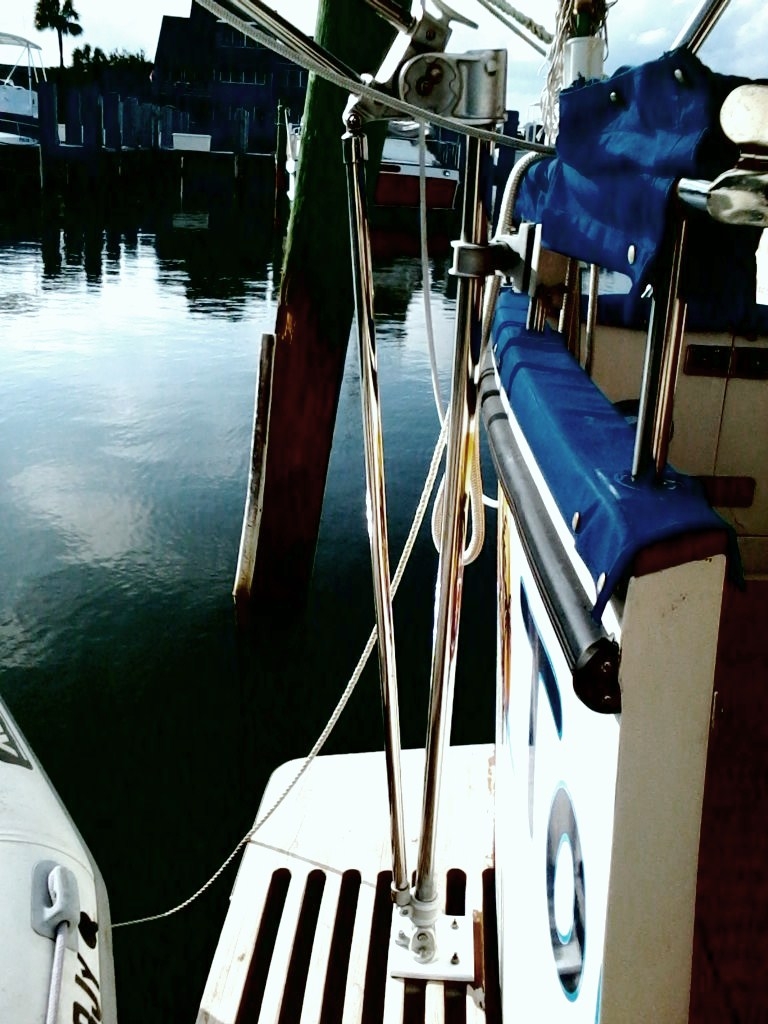

• Rail Clamp adjustable for 7/8” - 1-¼” Rails, or swivel base for mounting on decks, transoms, docks, or pilings.
• Stainless Mounting Hardware for a secure and lasting installation.
• Two-Year Warranty for peace of mind.
• Additional optional extended height with longer standpipes

Specifications

• Safe Working Load:
  • 250 lbs. per pair, ideal for a 10’ RIB with a 9.9 HP motor.
• Height and Reach:
  • Max Height from Base: 42" (at 36" reach).
  • Max Reach from Rail: 42" (at 34" height).
  • Fully adjustable to optimize for maximum height or reach.
• Product Weight: 40 lbs. (pair).
• Rail Clamp and Base Included
  • The included mounts are fully adjustable and change angle for mounting on Decks, Toe-Rails, or Transoms.
• 36" of Height and 36" of Reach - Adjustable Angle allows you to optimize for Max Height OR Max Reach
  • Max Height from Base: 42"   <@ 36" Reach>                    Max Reach from Rail: 42"   < @ 34" Height>
• Block and Tackle included with each davit
• Additional Height (longer Standpipe) Available
• The worlds most compact davit suited for ANY boat, and is FULLY REMOVABLE

Built for Strength and Reliability

• Premium Materials:
  Constructed with 316 Stainless Steel and Bright Clear Anodized AlMag-535.5 Castings for durability and corrosion resistance.
• Heavy-Duty Components:
  • 1-½” Heavy Wall Main Upright (Standpipe) for superior strength.
  • 1” Solid Reinforced Lifting Arms for reliable lifting in tough conditions.

Easy Installation

• Requires only a hacksaw, Philips screwdriver, and 7/16” wrench for installation.

Rotating Davit Design Rotates on advanced Teflon Sleeves for ease of use

Why Choose the Model 1400 Rotating Adjustable Angle Davits?

• Customizable and Adjustable: Fine-tune the height, reach, and angle to suit your specific needs.
• Built for Tough Conditions: Designed with heavy-duty materials to withstand the harshest marine environments.
• Compact and Removable: Streamlined design allows for easy removal when not in use.
• Complete Kit: Includes all necessary components for immediate installation and use.

Transform Your Boating Experience

The Model 1400 Rotating Adjustable Angle Davits are the ultimate solution for boaters looking for reliable, versatile, and precision-engineered lifting systems. Perfect for larger inflatables and tenders, these davits deliver exceptional performance and ease of use.

Contact us today to learn more or place your order. Let the Model 1400 make your boating adventures simpler, safer, and more enjoyable!
